Low Voltage Switchgear and Motor Control Centre

SMART LV System

RAWAK SMART LV System is a modular type Low Voltage Switchgear,
Distribution Boards and Controlgear assemblies, designed for indoor and outdoor installation. It is designed, verified and tested in accordance with IEC 61439-1 & -2 to safeguard operator safety while achieving optimal reliability.

System Design

Modular design suitable for Switchboards, Distribution Boards and
Controlgears applications. It can accommodate circuit breakers, switches and fuses combination. The modular design allows Form 2, Form 3 and Form 4 forms of internal separation.

Certification And License

Modular design suitable for Switchboards, Distribution Boards and
Controlgears applications. It can accommodate circuit breakers, switches and fuses combination. The modular design allows Form 2, Form 3 and Form 4 forms of internal separation.

The Assemblies

Engineered to simplify the assembly process, an ideal system for electrical contractors.

Type Test Certification

To ensure personal safety, operational reliability and equipment durability, RAWAK SMART LV System has been Type Tested, verified and examined by Dekra (KEMA Keur) to confirm its compliance to IEC 61439-2.

Application

RAWAK SMART LV System is suitable for indoor and outdoor applications. The enclosures meet Ingress Protection of IP41 for indoor application and IP55 for outdoor application.

Construction

The cubicles are constructed with High quality Galvanized Steel coated with Epoxy Powder for optimal corrosion resistant suitable for indoor and outdoor environment.

Extensible

RAWAK SMART LV System was designed as a modular system to 8 allow flexible onsite extension instead of complete replacement. This feature allows a short shutdown time whenever additional cubicle(s) are required without removing the entire system.

Quality Assurance

OISB is accredited to accordance with the internationally recognized Quality Assurance system, ISO 9001. This ensures a consistent high quality and reliable products.

Sustainable

Our solutions can help you manage and control your operational costs, enhance your system reliability and improve your competitiveness. OISB product is designed to cover your needs over the entire lifecycle of the electrical distribution equipment.

Flexible

The modular concept means that any enclosure combination
and sequence are possible. All RAWAK SMART LV System’s
H-Series, W-Series and F-Series are engineered to allow
the flexibility of configuration in single assembly, ie:
i) H-Series and F-series combination
ii) H-Series and W-Series combination
iv) W-Series and F-Series combination
v) H-Series, W-Series and F-Series combination
vi) H-Series, W-Series and F-Series with Depth Extension cubicles

In addition, the number of enclosures capable of being used in an installation is unlimited as sections can easily be connected. With the 25mm grid, It allows unrestricted internal components and equipment arrangement as well as unlimited
number of ways.

Extensible

RAWAK SMART LV System was designed as a modular system to allow flexible onsite extension instead of complete replacement.
This feature allows a short shutdown time whenever additional cubicle(s) are required without removing the entire system.

Construction

The cubicles are constructed with High quality Galvanized Steel coated with Epoxy Powder for optimal corrosion resistant suitable for indoor and outdoor environments.

Adaptable

RAWAK SMART LV System is fully complying with the stringent requirement in Oil & Gas Industries. It is also suitable for application in General Industries, Pharmaceutical, Utilities, Shipyards, Plantation, Commercial and Domestic Buildings, etc. The versatility lies with the detail product construction design, which is carefully designed and configured as Electrical Distribution Board, Switchboard, Control Panel, Interposing Panel and Instrument Cabinet. The design has double doors with front and rear accessibility.

Floor Standing System Options

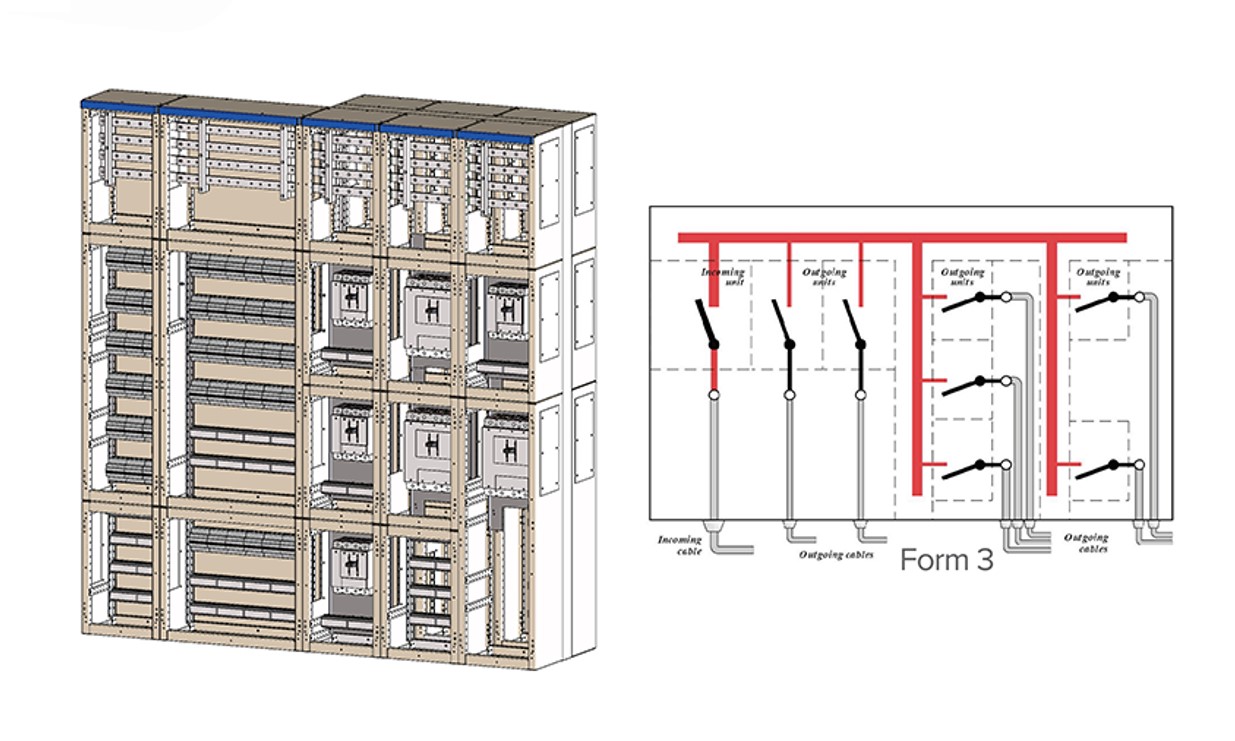

Low Voltage System — Form 3B of Internal Separation.
The Busbar is separated from the functional units and each functional unit is separated from the other unit. The terminal compartment is also separated from the busbar (and functional units). The design is to ensure the ptotection of whole control panel in case of short circuit.

Low Voltage System — Form 4 of Internal Separation.
The busbar is separated internally from the functional units, and each functional unit is separated from the others unit, with the terminal is enclosed in the same functional unit compartment.

Low Voltage System — Form 4B of Internal Separation.
Similar to Form 4A, in addition the terminals are enclosed in their own space.

Wall Mounting System Options

Combination of Top and Bottom system allows both top and bottom cable entries. For Form 3B internal seperation, all functional units are seperated from one another.

Bottom Busbar system, Fuse and fuseless functional units, multiple or single cubicle configurations are made possible. Internal Form of Seperation on requirement.

Enclosure Dimensions

Busbar System
